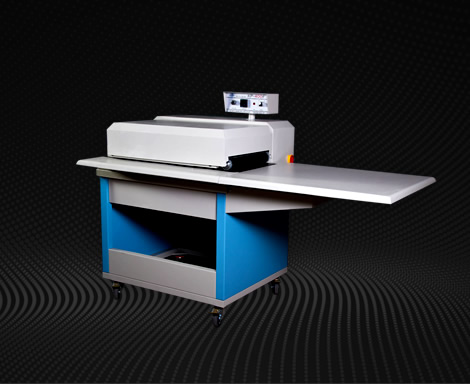

FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 9 |
| Resistance Power | 1000 W |
| Maximum Heating Power | 9 kW |
| Nominal Heating Power | 4.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 11.5 kgf/cm2 |
| Width Pasting | 65 cm |
| External Dimensions | 291cm x 110cm x 130cm |
| Weight | 650 kgf |

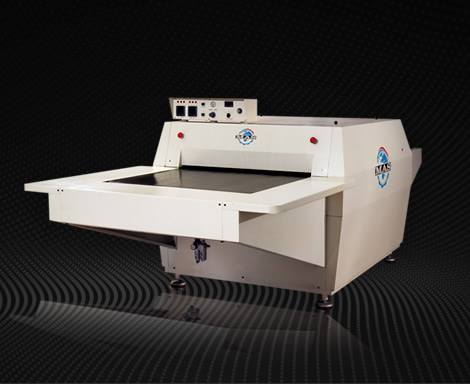

SHIRT FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 9 |
| Resistance Power | 1000 W |
| Maximum Heating Power | 9 kW |
| Nominal Heating Power | 4.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 11.5 kgf/cm2 |
| Pasting Width | 65 cm |
| External Dimensions | 295cm x 135cm x 113cm |
| Weight | 650 kgf |

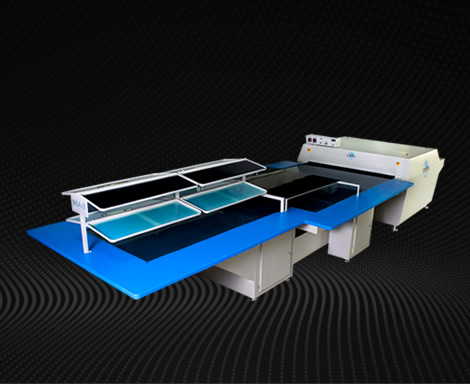

SHIRT FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1400 W |
| Maximum Heating Power | 21 kW |
| Nominal Heating Power | 10.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 7 kgf/cm2 |
| Pasting Width | 120 cm |
| External Dimensions | 367cm x 164cm x 138cm |
| Weight | 1000 kgf |

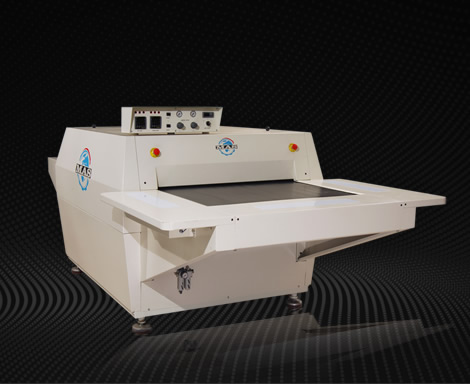

SHIRT FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1400 W |
| Maximum Heating Power | 21 kW |
| Nominal Heating Power | 10.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 7 kgf/cm2 |
| Pasting Width | 120 cm |
| External Dimensions | 346cm x 164cm x 138cm |
| Weight | 1000 kgf |

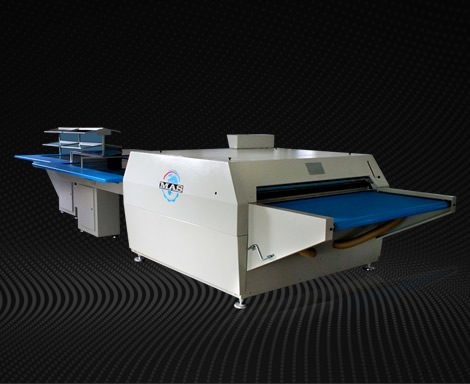

FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1400 W |
| Maximum Heating Power | 21 kW |
| Nominal Heating Power | 10.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 7 kgf/cm2 |
| Pasting Width | 120 cm |
| External Dimensions | 380cm x 200cm x 138cm |
| Weight | 1000 kgf |
FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1600 W |
| Maximum Heating Power | 24 kW |
| Nominal Heating Power | 12 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5.7 kgf/cm2 |
| Pasting Width | 140 cm |
| External Dimensions | 380cm x 220cm x 138cm |
| Weight | 1200 kgf |

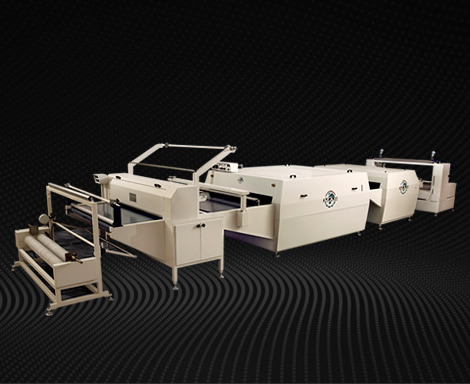

FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1800 W |
| Maximum Heating Power | 27 kW |
| Nominal Heating Power | 13.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5 kgf/cm2 |
| Pasting Width | 160 cm |
| External Dimensions | 386cm x 225cm x 138cm |
| Weight | 1400 kgf |

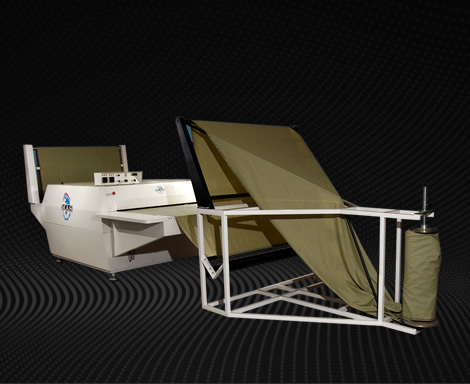

FABRIC OPENING - IRONING PRESS DECATURE - TECHNICAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1800 W |
| Maximum Heating Power | 27 kW |
| Nominal Heating Power | 13.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5 kgf/cm2 |
| Pasting Width | 160 cm |
| External Dimensions | 386cm x 225cm x 138cm |
| Weight | 1400 kgf |

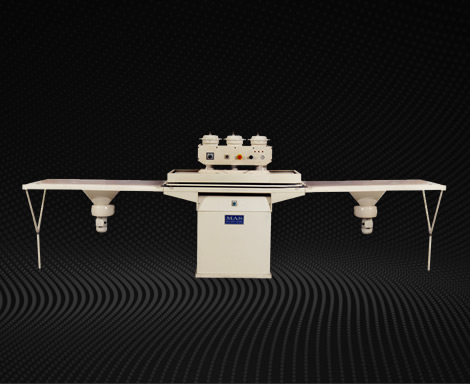

TRANSFER PRINT FINISHING PRESS - TECHNICAL SPECIFICATIONS
| Temperature Range | 50-200C |
| Time Setting | 0 - 30 s |
| Air Pressure | 6 Bar |
| Surface Pressure | 0.42 kgf/cm2 |
| Pasting Area | 60 x 130 cm2 |
| Heating Power | 8 kW |
| External Dimensions | 0.93 cm x 4.6 cm x 1.5 cm |
| Weight | 300 kg |

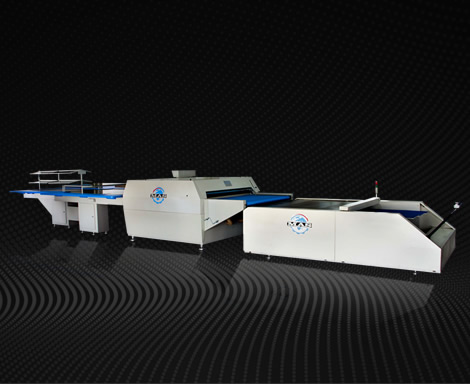

MAS 10 - TECHNICIAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1800 W |
| Maximum Heating Power | 27 kW |
| Nominal Heating Power | 13.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5 kgf/cm2 |
| Pasting Width | 160 cm |
| External Dimensions | 386cm x 225cm x 138cm |
| Weight | 1400 kgf |
MAS 11 - TECHNICIAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1800 W |
| Maximum Heating Power | 27 kW |
| Nominal Heating Power | 13.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5 kgf/cm2 |
| Pasting Width | 160 cm |
| External Dimensions | 386cm x 225cm x 138cm |
| Weight | 1400 kgf |
MAS 12 - TECHNICIAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1800 W |
| Maximum Heating Power | 27 kW |
| Nominal Heating Power | 13.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5 kgf/cm2 |
| Pasting Width | 160 cm |
| External Dimensions | 386cm x 225cm x 138cm |
| Weight | 1400 kgf |
MAS 13 - TECHNICIAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1800 W |
| Maximum Heating Power | 27 kW |
| Nominal Heating Power | 13.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5 kgf/cm2 |
| Pasting Width | 160 cm |
| External Dimensions | 386cm x 225cm x 138cm |
| Weight | 1400 kgf |
MAS 14 - TECHNICIAL SPECIFICATIONS
| Band Speed | (m/dk) 0-10 |
| Number of Resistance | 15 |
| Resistance Power | 1800 W |
| Maximum Heating Power | 27 kW |
| Nominal Heating Power | 13.5 kW |
| Bonding Temperature Range | 120C - 160C |
| Bonding Pressure | (6 bar) 5 kgf/cm2 |
| Pasting Width | 160 cm |
| External Dimensions | 386cm x 225cm x 138cm |
| Weight | 1400 kgf |
